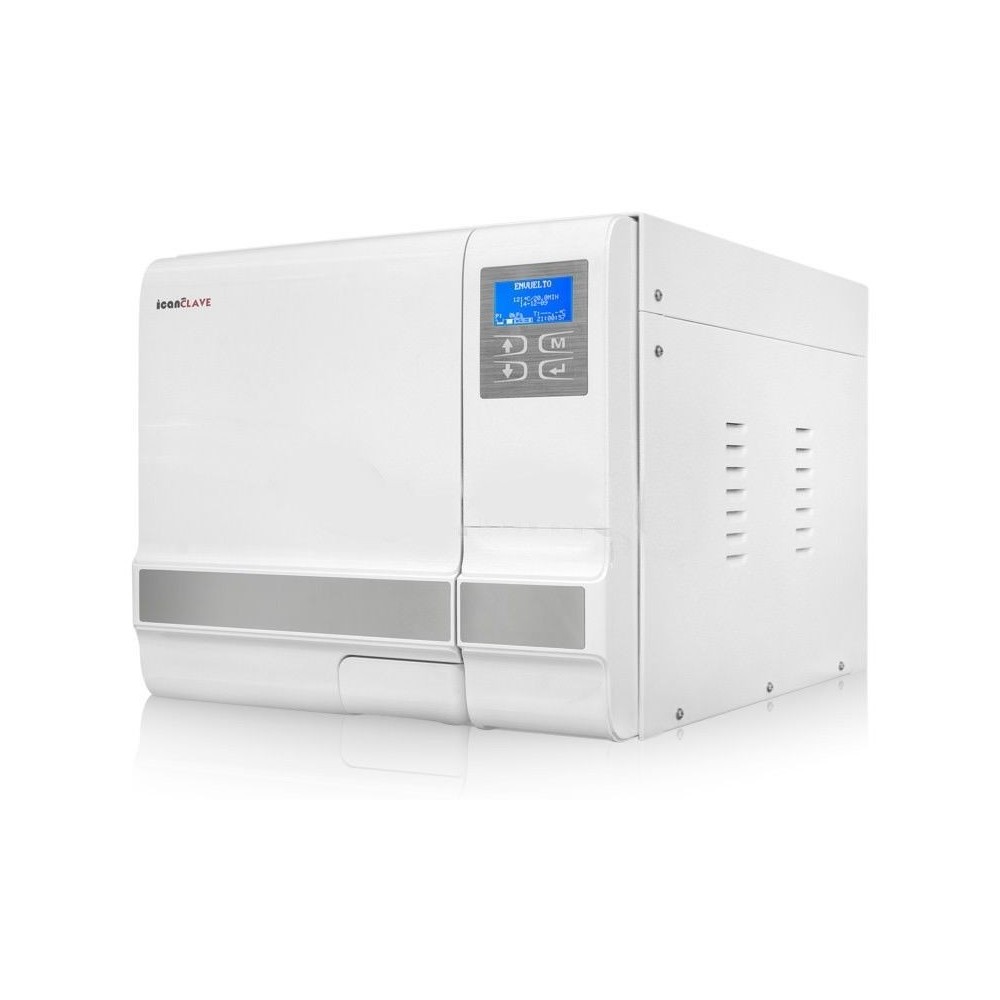

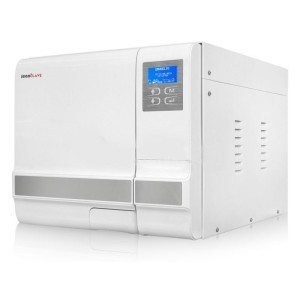

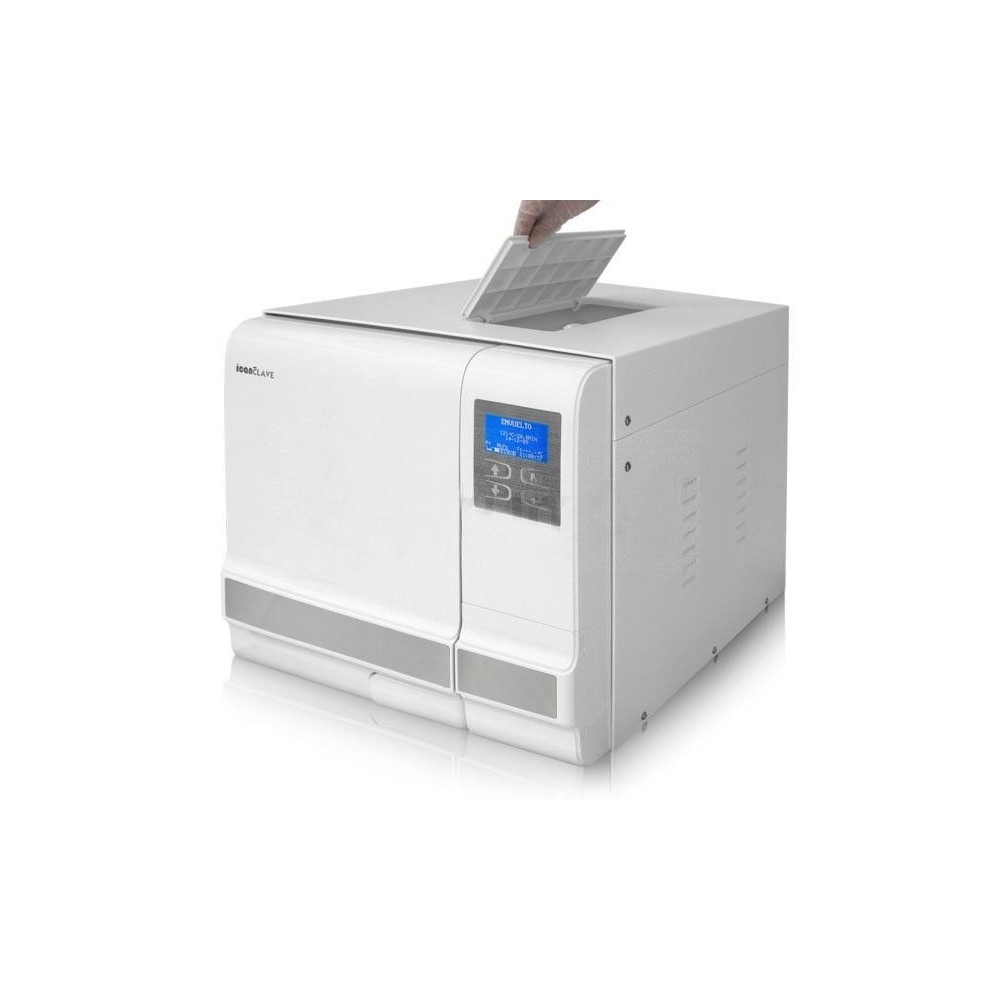

autoclave 18 liters class b with usb.

REF: ES108B

ORDER ON REQUEST.

REQUEST BUDGET AND DATE OF SERVICE

Characteristic

  • Fully automatic with pre-programmed sterilization cycles.

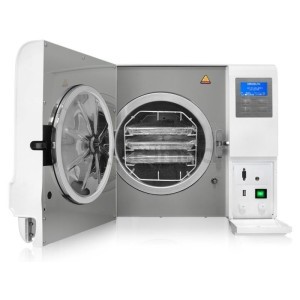

  • Chamber and door in stainless steel, with an electro-polished finish.
  • High precision control system for perfect sterilization results.
  • User friendly interface.
  • LCD screen, continuously displays information about the cycle process.

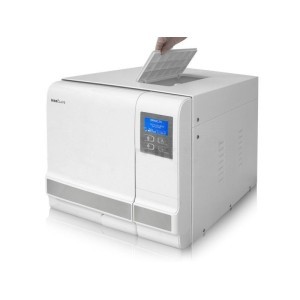

  • Open type water tank, this feature makes it easier to fill water and clean the tank. IMPORTANT: Do not reuse the water from the residual tank.
  • Languages: Spanish, English, German, French, Italian, Dutch, Polish, Romanian, Czech, Latvian, Lithuanian, Hungarian and Chinese.

security devices

  1. circuit breaker
    Protects the equipment from any possibility of failure in the electricity supply.
    Action: Interrupt the power supply.
  2. Thermal circuit breakers.
    Protection against possible short circuits and possible overheating in the primary network of the transformer.
    Action: Temporary interruption (until the temperature has dropped) in the winding.
  3. Security valve.
    Protection against a possible increase in pressure inside the chamber.
    Action: Release of steam until a normal pressure level is restored.
  4. Micro switch to control the status of the door.
    Controls the door adjustment in order to start a sterilization cycle.
    Action: Transmits the signal to alert about the incorrect position of the door.
  5. Thermostat for heating resistances in the steam generator.
    Protection against possible overheating in the heating resistors in the steam generator.
    Action: Interrupts the power supply to the heating resistors in the steam generator.
  6. Thermostat for the heating resistances in the chamber .
    Protection against possible overheating in the heating resistors in the chamber.
    Action: Interrupts the power supply to the heating resistors in the cold room.
  7. Self leveling of the hydraulic system.
    The hydraulic system will return to its natural pressure in case the sterilization cycle is interrupted manually.
    Action: The internal pressure will be restored automatically.
  8. door lock
    Effective protection to prevent accidental opening of the door.
    Action: Prevents the opening of the door by means of a hydraulic locking system.

 Technical characteristics:

  • Rated Voltage: 220-240V; 50/60hz; 10A
  • Chamber dimensions: 200 x 360mm
  • Circuit breaker: F16A/400V
  • Rated Power: 2200VA
  • Sterilization temperature: 121 ºC / 134 ºC
  • Distilled water tank capacity: 2.5 L approx.
  • Operating temperature: 5ºC / 40ºC
  • Operating Relative Humidity: Max. 80%, non-condensing

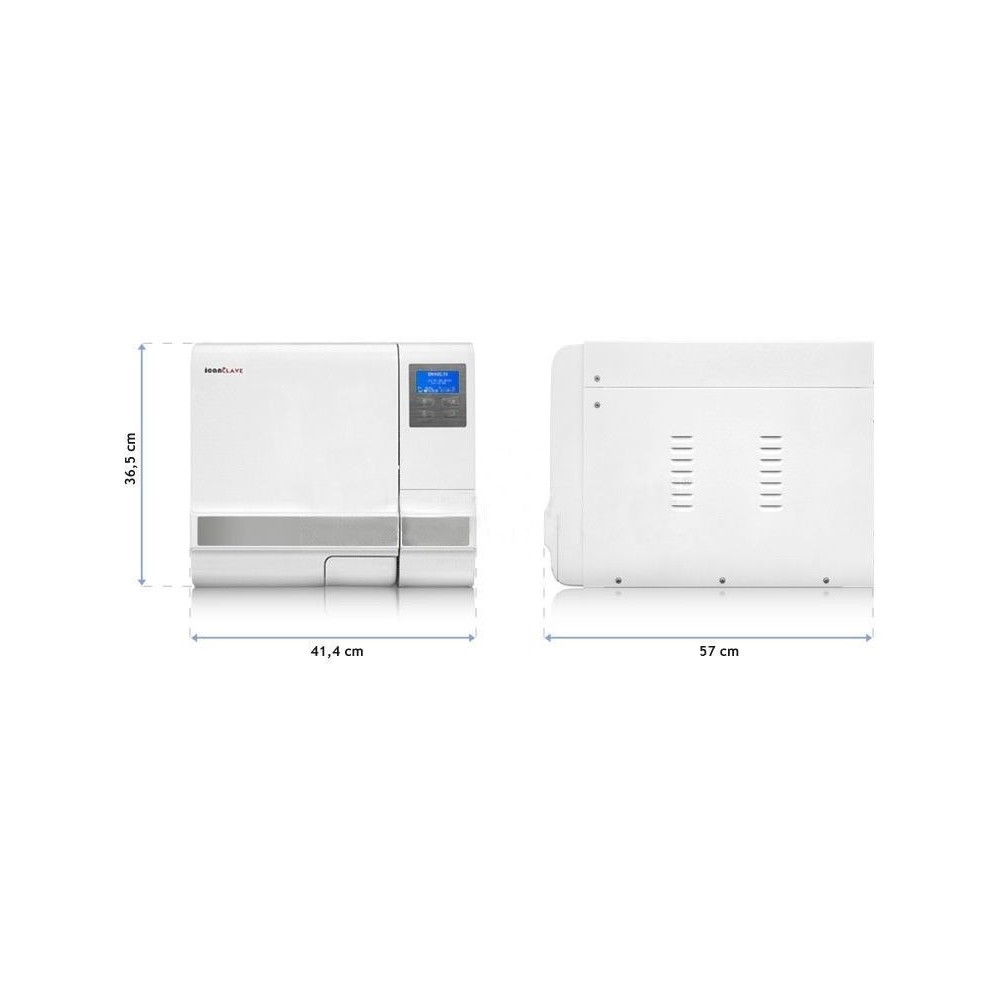

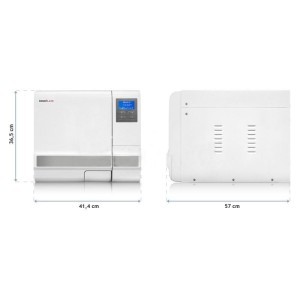

  • External dimensions: 414 x 365 x 570mm
  • Net Weight: 51 Kg
  • Max Level Noise: <70dB
  • Operating atmospheric pressure: 76 / 106 kPa

Components:

  • distilled water tank
  • LCD screen
  • Control Panel
  • main switch
  • Drain tap for distilled and used water
  • USB port
  • Security valve
  • ventilation grill
  • Lock system
  • Power cord
  • Label

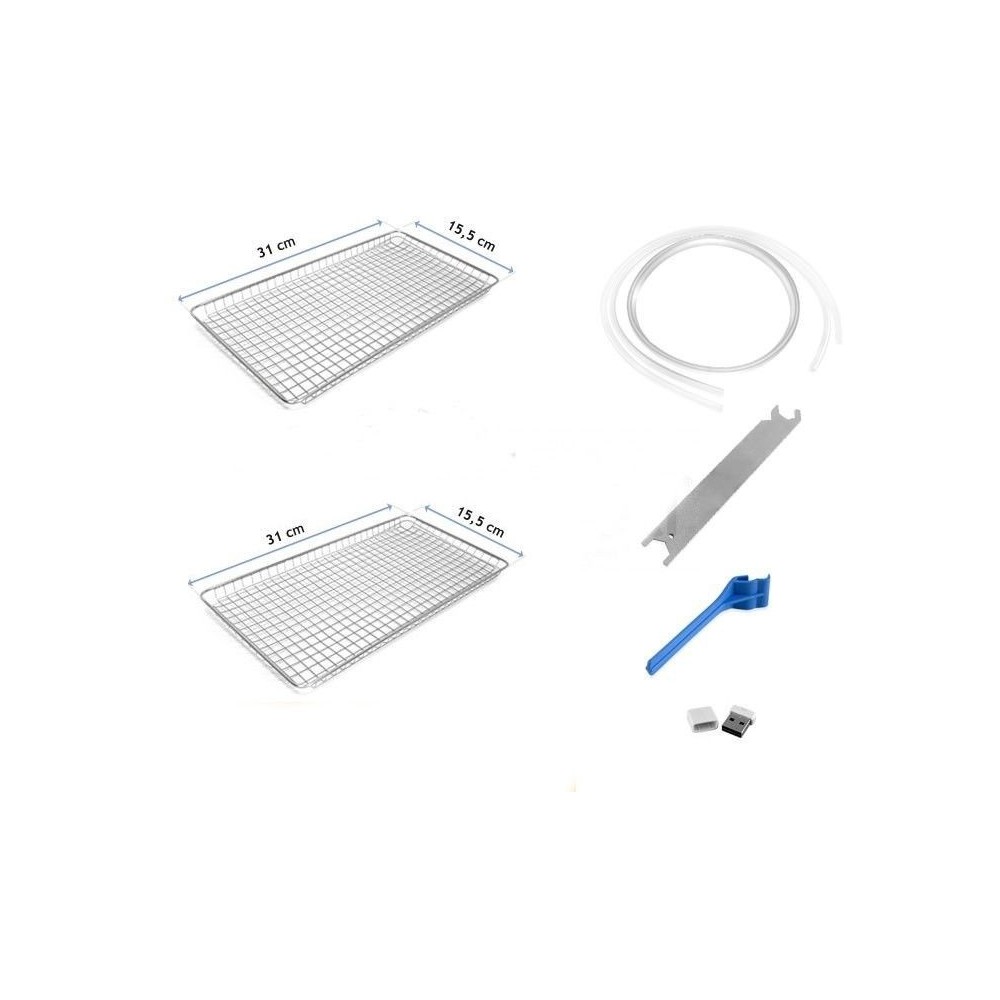

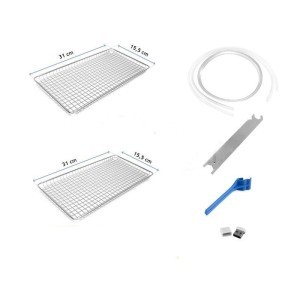

Accessories included:

  • Sterilizer
  • 3 Instrument trays
  • Base for trays
  • Tray extraction handle
  • door adjustment tool
  • 2 drain hoses
  • door seal
  • Manual

* Does not include printer

Step by step autoclave process:

1- Open the door, take the instruments and accessories that are inside the sterilization chamber, remove the wrapper and proceed to clean them.

2- Connect the power cord to a suitable power source.

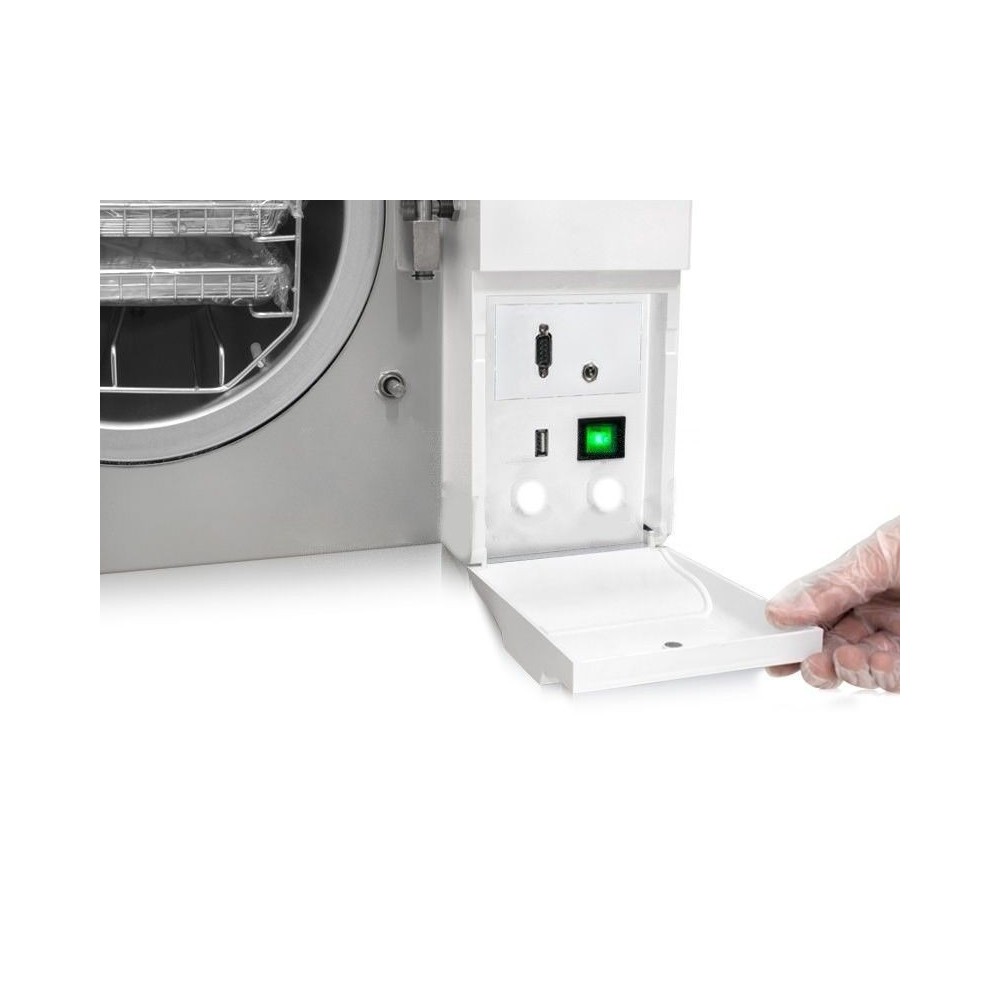

3- Power: The main switch is located on the front-bottom right side of the equipment.

  • Once activated, the LCD screen will light up, where the basic operating icons of the sterilizer are shown, such as the position of the door, the water level, the sterilization program, the date, the time, etc.

4- Fill the tank with distilled water.

  • Remove the top cap of the tank and proceed to fill it, if you hear a signal, it means that the water level allowed in the tank has been exceeded, please stop immediately and drain the amount of water that is necessary for the signal to turn off.

5- Preparation of the material to be sterilized:

  • Place instruments that are of different material in different trays, however be sure to separate these prior to sterilization.
  • If the instruments are not made of stainless steel, place sterilization paper between the tray and the instruments.
  • Do not allow direct contact between instruments of different materials.
  • Check that all instruments are in the correct position.
  • Place instruments such as lenses, containers, tubes, etc. on the tray. in an inverted position, in such a way that no water pools inside them.
  • Do not overload trays beyond their limit.
  • Do not overlap the trays one on top of the other, or put them in direct contact with the wall of the sterilization chamber.
  • Do not use metal clips or pins, this can jeopardize the operation of the sterilizer.

6- Select the sterilization program.

7- Start the sterilization cycle.

  • After having selected the sterilization program, insert the instruments into the chamber through the trays, using the supplied plastic handle.
  • Once the instruments are inside the chamber, proceed to close the door.
  • Caution: Be sure to close the door properly, otherwise the sterilizer will alarm and you will not be able to start the program or it will stop during the cycle.

8- Start the sterilization program.

  • Press the start button, then the sterilizer will start working for approximately 30-75 minutes.

9-Finished the sterilization cycle.

  • Once the sterilization cycle is finished, the printer ( not included* ) will automatically print the complete report of the cycle.
  • After the pressure drops to zero, you can open the door and remove the instruments. The sterilizer will alert by means of an audible signal once the sterilization cycle is finished.
  • Caution: Whenever removing instruments, use the supplied plastic handle to support the trays.

* The printer is purchased separately. Reference: 922-PRINTER04.

IMPORTANT: Do not reuse the water from the residual tank.

Facility:

  • There should be at least 10 cm of free space around the sterilizer, 25 cm at the top, and enough space for the door to open fully.
  • The place where the sterilizer operates must have adequate ventilation.
  • The sterilizer must be placed on a table resistant to weight and at a suitable level for handling.
  • Do not cover or block the side outlets or the condenser fan air outlet grill.
  • Do not locate the sterilizer near water sources where it can be splashed.
  • Keep it away from other sources of heat.
